E4-便携式光谱仪

永晖检测

发布日期:2019-02-16 06:08:39

产品详情

1. 技术参数

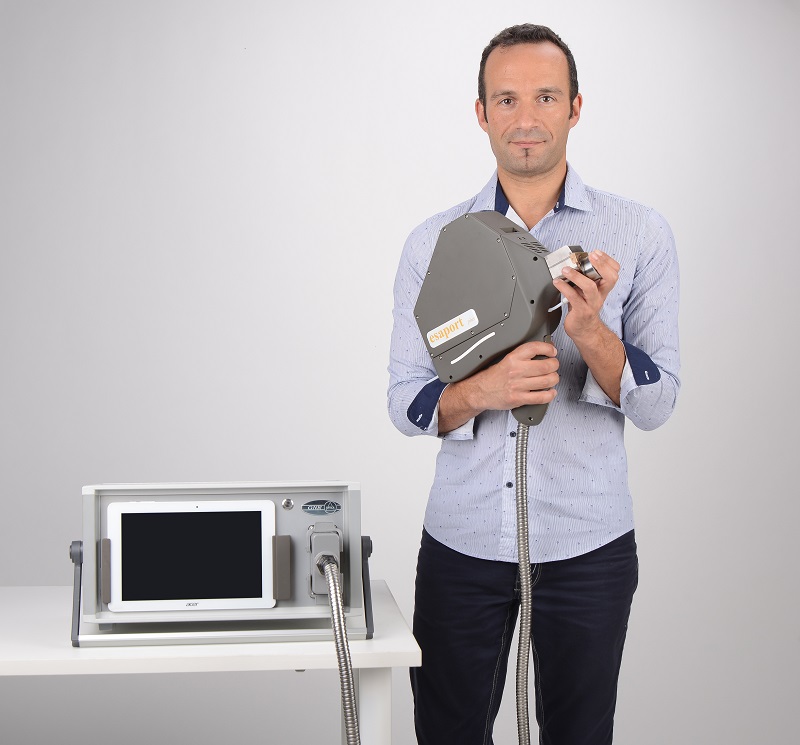

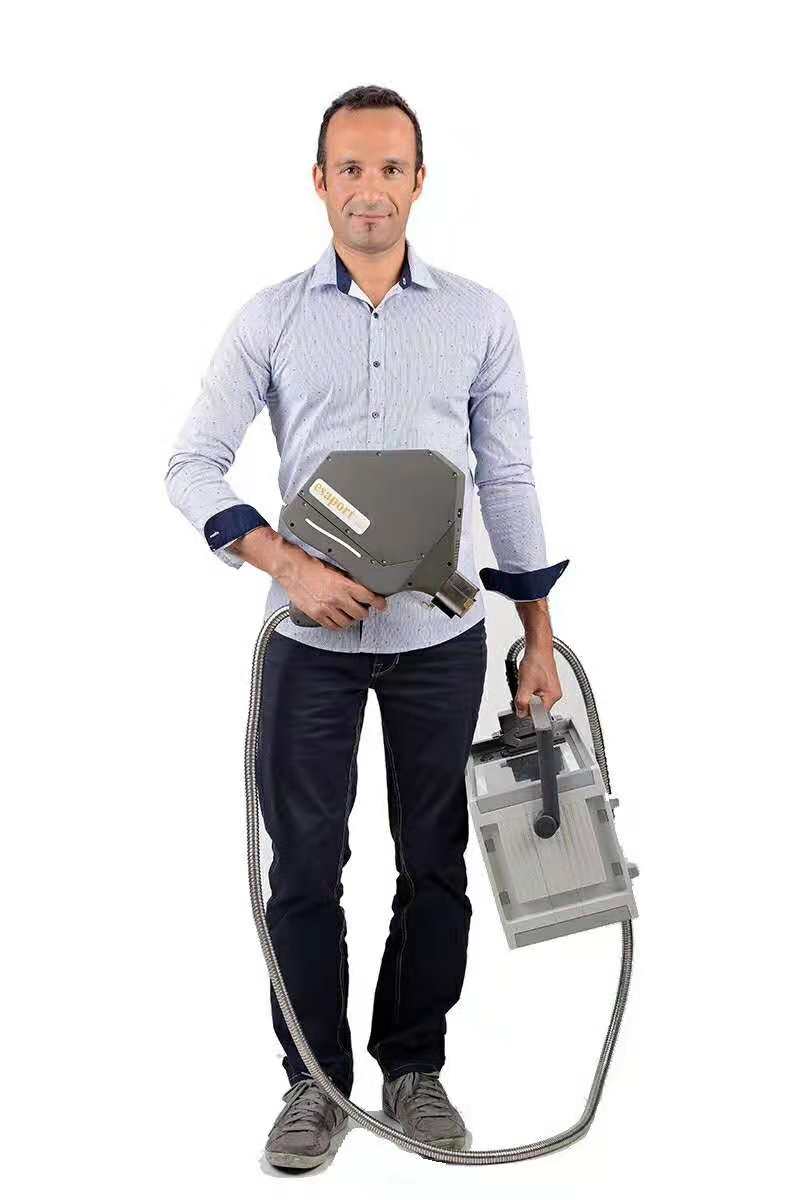

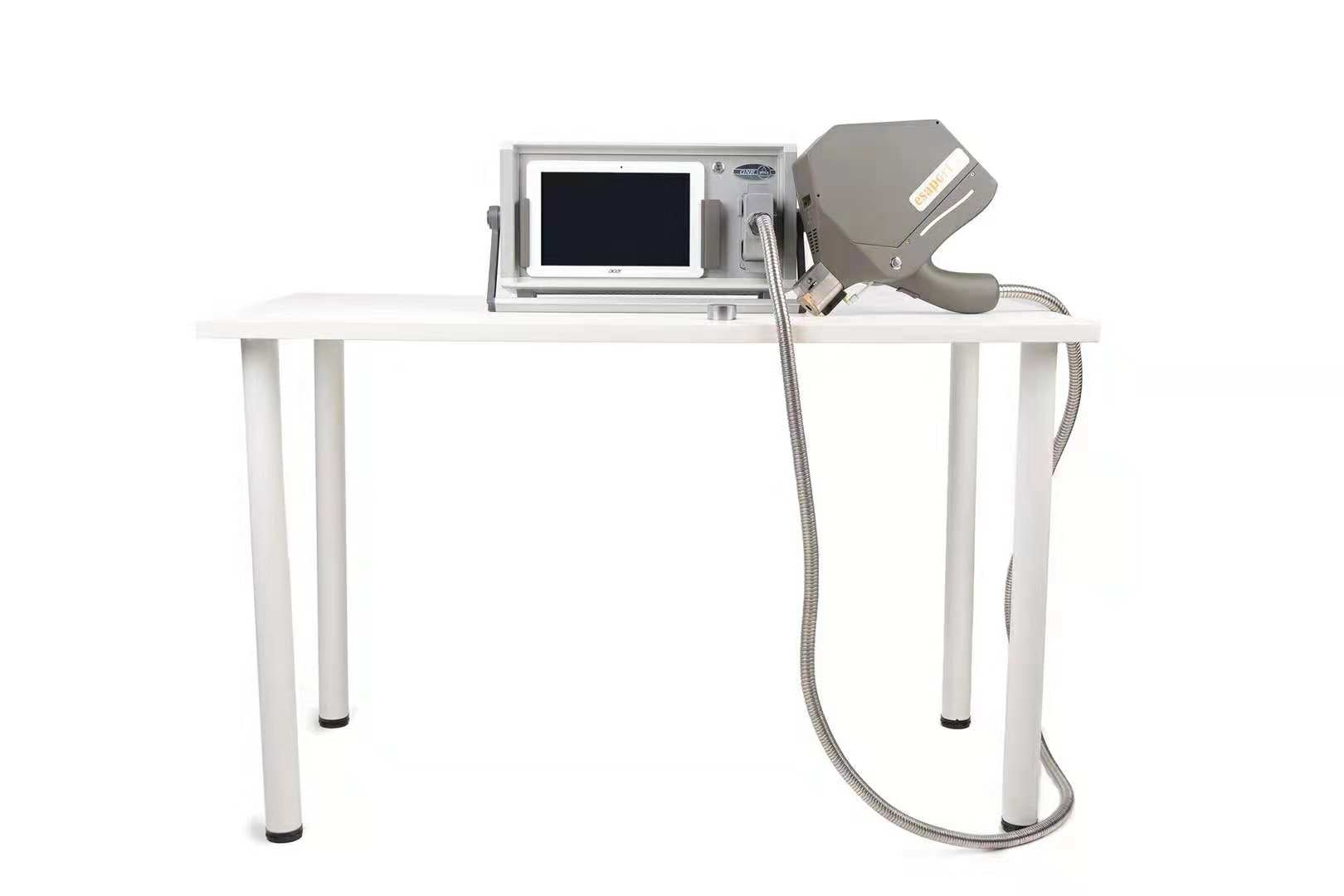

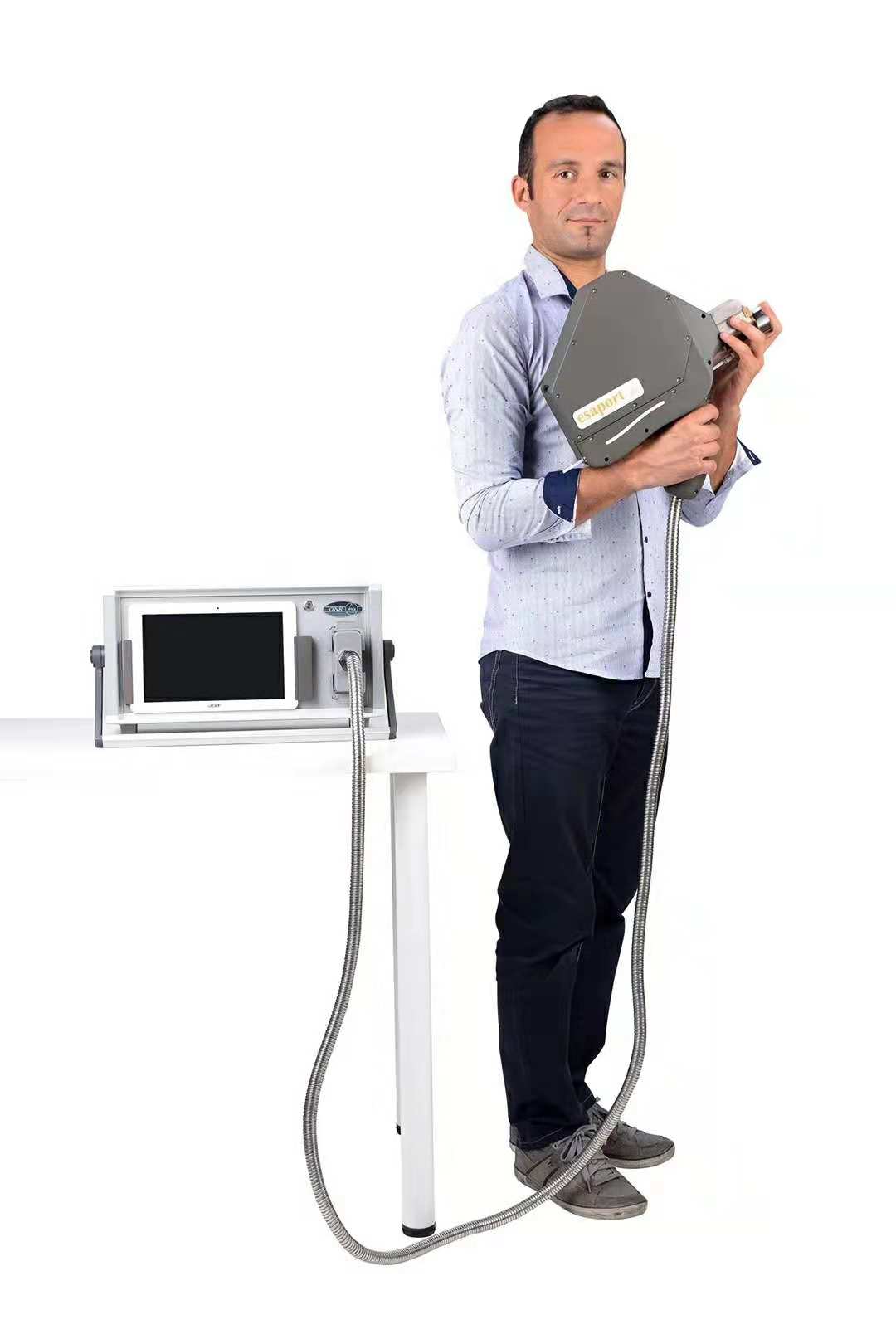

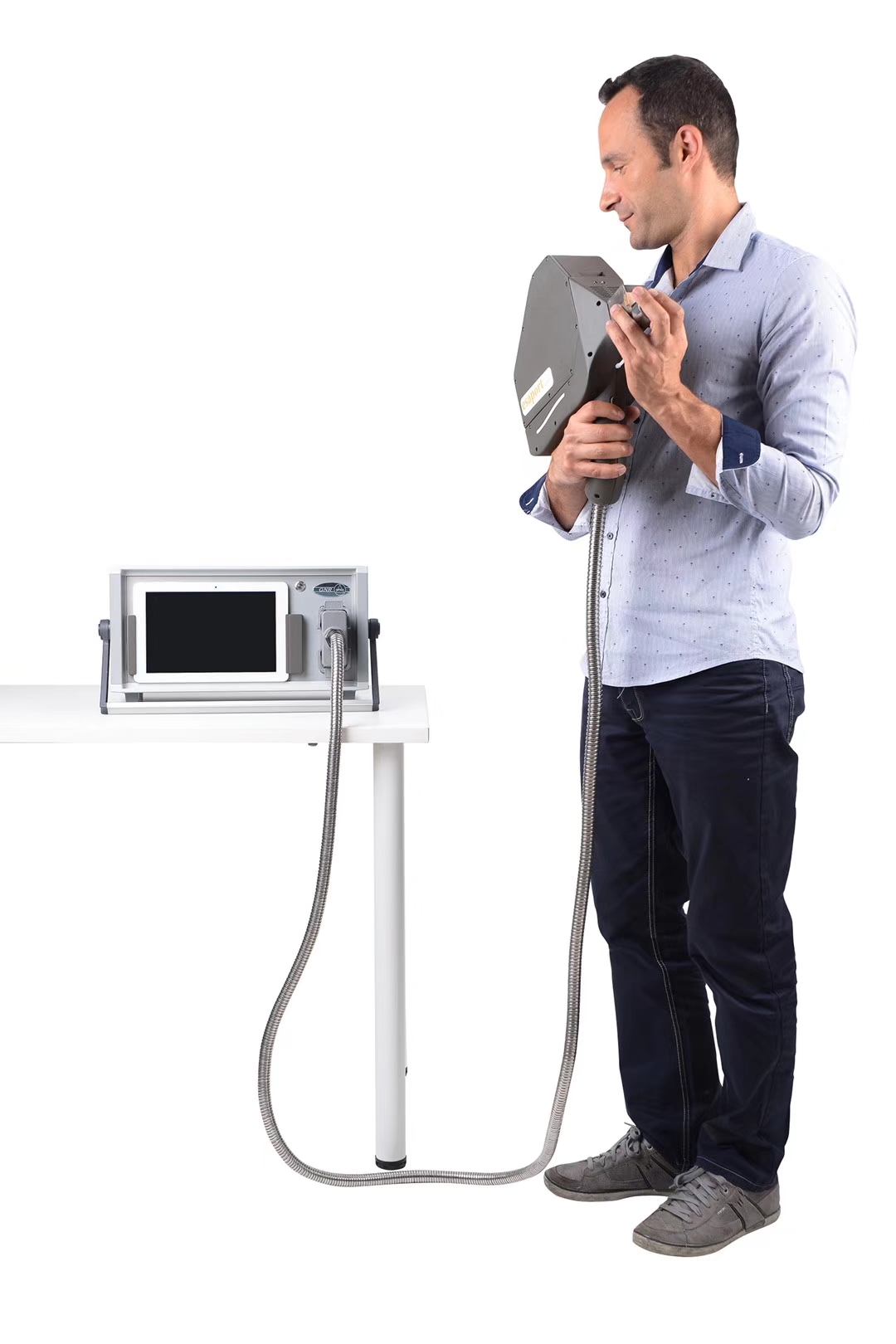

E4移动式直读光谱仪是一款方便携带、测样精准的直读光谱仪。既可以满足实验室级的检测需求、也可以在现场对材料进行快速鉴定。E4可提供不同的配置,用于分析各种黑色及有色金属合金。



E4直读光谱仪配置:



1. 光学系统

2. 元素谱线

3. 控制、采集和读出系统

4. 火花源

5. 激发枪

6. 软件

7. 控制中心:电脑

8. 尺寸

9. 电源

10. 其他





E4组成部分描述:



1. 光学系统



l 多块高性能CCD检测器系统

Multi High Resolution CCD Multi detectors (Charge Coupled Device) system with CCD solid state detectors.

l 每块CCD 3,648 像素

Each CCD has 3,648 active elements (pixels equivalent)

l 高性能全息衍射光栅,光栅刻线3600 条/mm

High luminosity holographic grating with 3600 grooves per mm

l 单点校准算法+波长实时校准应对漂移

Single Calibration arithmetic for drift

l 焦距:150 mm

Focal length 150 mm for all optical systems

l 谱线波长:170-460 nm

Spectral optical wavelength 170-460 nm

l 密闭的氩气填充光学室可以避免灰尘、光线的干扰

Argon flush tight optical chamber sealed against light and dust

l 可配置两款激发枪,分别用于全元素分析以及金属元素分析

Optionally configured with two probes, the total elements probe and metal-only probe.





2. 元素谱线



l E4覆盖了全元素分析范围,可根据具体需要分析相应的元素

E4 can be equipped with all the needed spectral lines basing on analytical  programs requested

l 光学系统包括固态检测器能够测量样品所发出的所有谱线

Optical system includes full range multi-channel CCDs solid state detectors able  to measure the whole optical spectra emitted by all elements in the samples

l 能为将来可能的升级,增加分析线(元素)方便

It’s always possible to integrate new spectral lines (elements) for future  upgrade

l 可现场增加分析程序

Possible on site addition of analytical program





3. 控制、采集和读出系统



l 电子系统具有微处理器控制的多通道积分和数据系统采集功能

Electronic system with integrators multi-channels and Data System Acquisition  PC controlled by microprocessor

l 高速64位模数转换器

High speed 64 Bit ADC

l ISP混合信号Flash微控制器100MHz

Mixed Signal ISP Flash MCU 100 MHz

l 串行通讯接口源

Serial Source Interface

l 高速读出及高速USB 3.0借口支持快速数据控制与处理系统

High speed readout with high speed interface USB 3.0 for fast data processing  and controlling the system





4. 火花源



l 全自动控制火花源

Full automatic controlled source

l 半导体控制放电激发

Solid state spark source semiconductor controlled

l 1 到 100 A等离子体电流

Plasma current from 1 to 100 A

l 放电参数由密码保护

The discharge parameters are protected by password

l 特别的分析要求可有不同的激发参数

Variable discharge parameters for individual analytical tasks

l 火花光源放电稳定,不受供电系统波动的影响

The spark source is stabilized against variations of the power supply

l 激发参数由激发线和分析程序自动标定和控制

Excitation parameters configured and controlled according to excitation lines  and analytical programs automatically

l 火花源可有多种参数设置

Spark source with variable parameters

l 火花频率: 50 到 to 1000 Hz (可控)

Spark Frequency: 50 up to 1000 Hz (controllable)

l 单火花持续时间 10-10000 us (可控)

Single spark time 10-10000 us (controllable)

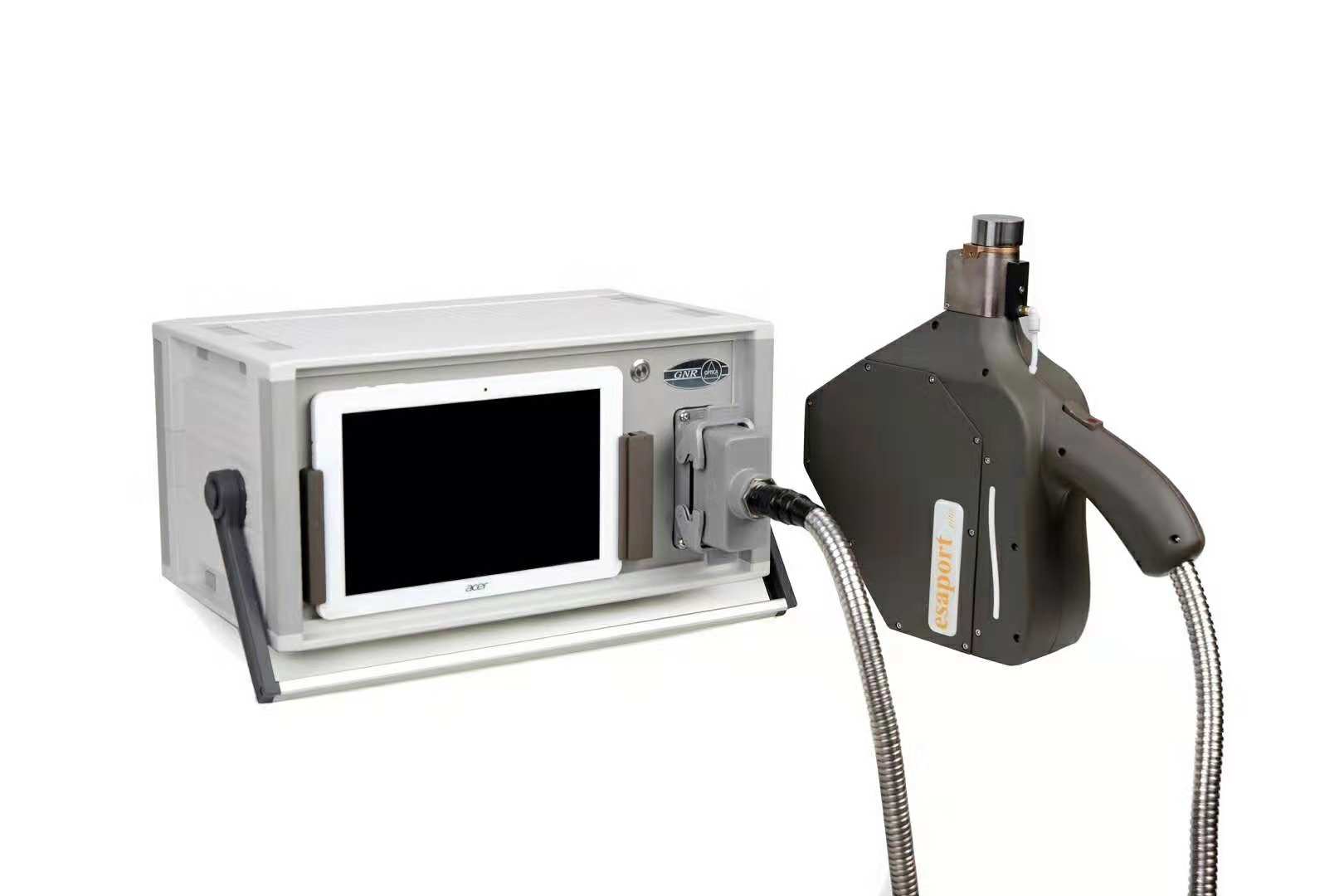

5. 激发枪(枪头直径35mm,激发孔直径12mm)



l 全元素激发枪在枪头配置了分光室可对全元素进行分析

The spark probe is equipped with an optical chamber to analyze all the  elements could be measured.

l 火花参数与台式直读光谱仪一样,这意味着可以完成任何台式直读光谱仪的应用

The spark parameter is same as stationary one, this means it could do all the  application that stationary OES could do.

l 氩气吹扫激发枪,低氩气消耗

Argon flushed spark probe with minimum consumption of Argon

l 不同样品的适配器可满足各种样品的需求(可选)

Small adapters for different samples are also available for various kind of  samples (options)

l 可插拔式设计,方便快速安装

Pluggable probe design allows fast installing.

l 无光纤设计,激发枪与主机采用USB数据线连接方式

Fiber-Free design. The probe connects main unit by USB cable.

l 数据连接线标配3米,可定制各种尺寸

The standard USB cable is 3m. Different size is available.





6. 软件



计算每种元素的校正曲线需考虑到各种基体(参考线)。

For calculation of calibration curves for each elements into consideration of  various matrixes (references) available for the calculation of analytical results.



软件功能: Software allows for

分析和校正:ANALYTICAL AND CALIBRATION:



l 便捷的用户图形界面

Easy GUI (Graphic Interface User) system

l 创建或修改分析程序

Creation or modification analytical programs

l 常用的操作功能键

Function keys for routine operations

l 可选择的输出方式 ( 强度,强度比,未校正的浓度,校正后的浓度等)

Output unit selectable (intensities, intensities ratios, uncorrected  concentrations, corrected concentrations etc.)

l 可选择的浓度单位 ( ppm, % )

Selectable concentrations units (ppm, %)

l 通用标准化

Global recalibration

l 微型标准化

Mini calibration (Type recalibration)

l 校正元素间的干扰

Correction of inter elemental interferences

l 可显示标准偏差和相对标准偏差

Standard deviation and relative standard deviation functions

l 软件可去除不良火花

Reject one or more discharges

l 合金类型鉴定(UNI, ISO, DIN, EN, ASTM, JIS, BS, 等.)

Determination type of alloy (quality name) according to the requested norm  (UNI, ISO, DIN, EN, ASTM, JIS, BS, etc.)

l 标样库

Standards library

l 国际标准物质库

International norms library

l 牌号鉴定

Quality identification

l 支持碳当量或其他参数的计算

Calculation of Carbon equivalence or any other parameter consequent to the  analysis

l 可标记超出工作曲线范围的元素分析结果

Signaling of out prefixed range elements

l 具有根据分析时间或激发次数自动再校正功能

Possibility of automatic signal for recalibration depending on time or on spark  number



统计功能软件:STATISTIC SOFTWARE functions:



l 统计计算

Statistic calculation

l 可打印所有激发结果或是最多100次的激发平均结果,及其标准偏差和相对标准偏差

Printing of all discharges or only the average of up more than 100 discharges,  standard deviation and relative standard deviation

l 硬盘存储数据便于今后的研究分析

Filing on Hard Disk of all data with possibility of researching various keys

l 可连接外部计算机或服务器

Connection to external computers or central/server system



综合特性:General properties:



l 32位应用软件

Software with 32bit application

l 字体、字体大小设定

Fonts, font-sized setup up to setting on screen

l 日期/时间格式基于Windows设置

Date/time formats compatible with Windows setup

l 多种输出功能或对话操作的快捷图标

Various icons for quick access to output functions or dialogues

l 下拉式菜单操作文档、筛选、观察

Drop lists for File, Filter, View

l 样品识别域数量不受限

Unlimited number of sample id fields

l 帮助文件

Help task

l 测样结果可以Excel或者PDF格式编辑

Measuring data could be edited by Excel or PDF

l 全自动控制,自动诊断功能

Fully automatic control and automatic diagnostic function



数据库:Database:



l 输入、输出

Import, Export

l 仪器与通信间的接口

Communication & Instrument interfacing

l 文件的共享、传输

File for sharing, transferring

l 输出文件、统计程序

Export to files, statistic programs



文档:Documentation:



l 标准输出、页面设置logo或信头功能

Standard print, page set-up with logo or letter head functions

l 打印设置、打印预览

Printer set-up, Print Preview

l 数据打印、工作曲线打印

Data printing, curves printing



分析管理:Analyses management:



l 数据库管理和控制

Database management and controller

l 多窗口支持多任务工作

Multi-windows for multi tasks working

l 不限制察看分析结果列表的数目

Unlimited number of views for analyses table

l 所有数据库域的查询功能

Search function for all data fields in view

l 分析的编辑功能

Edit function for analyses

l 元素、大小、小数点的显示格式

Display formats with elements, forms, dimensions, decimals

l 分析结果复制功能

Copy function

l 结果的单位和小数点选择(不限数目)

Units & dimensions (unlimited number)

l 手动分析结果输入和样品鉴别

Manual analysis input and sample identification

l 可选使用条形码阅读器输入样品名称

Optional sample code input using bar code reader

l 所有样品识别和元素域的操作一目了然

Transparent access thru all sample-ids & element fields

l 适用于所有分析结果的查询和输出

Applicable for all analyses views and outputs

l 牌号数据库

Quality database

l 牌号控制功能

Quality control function

l 牌号识别功能

Quality identification

l 分析结果列表中牌号控制的显示

Display of quality control in the analyses table

l 收到的已存在牌号的自动检测

Automatically check of received qualities for existence

l 扩展公式编辑功能

Formula editor with extended possibilities

l 自定义公式编辑

Formula calculation

l 数字统计功能(序号, 加合, 平均, 绝对/相对标准偏差, 最大, 最小, 范围)

Numeric statistics (no., sum, average, abs./relstd dev., min, max, range)

l 步宏编辑

Macro programs, with asynchronous execution

l 异步宏排序

Macro sequences, with asynchronous execution

l 自动项目或预定宏执行的任务服务器

Job server for automatic event, or scheduled macro execution

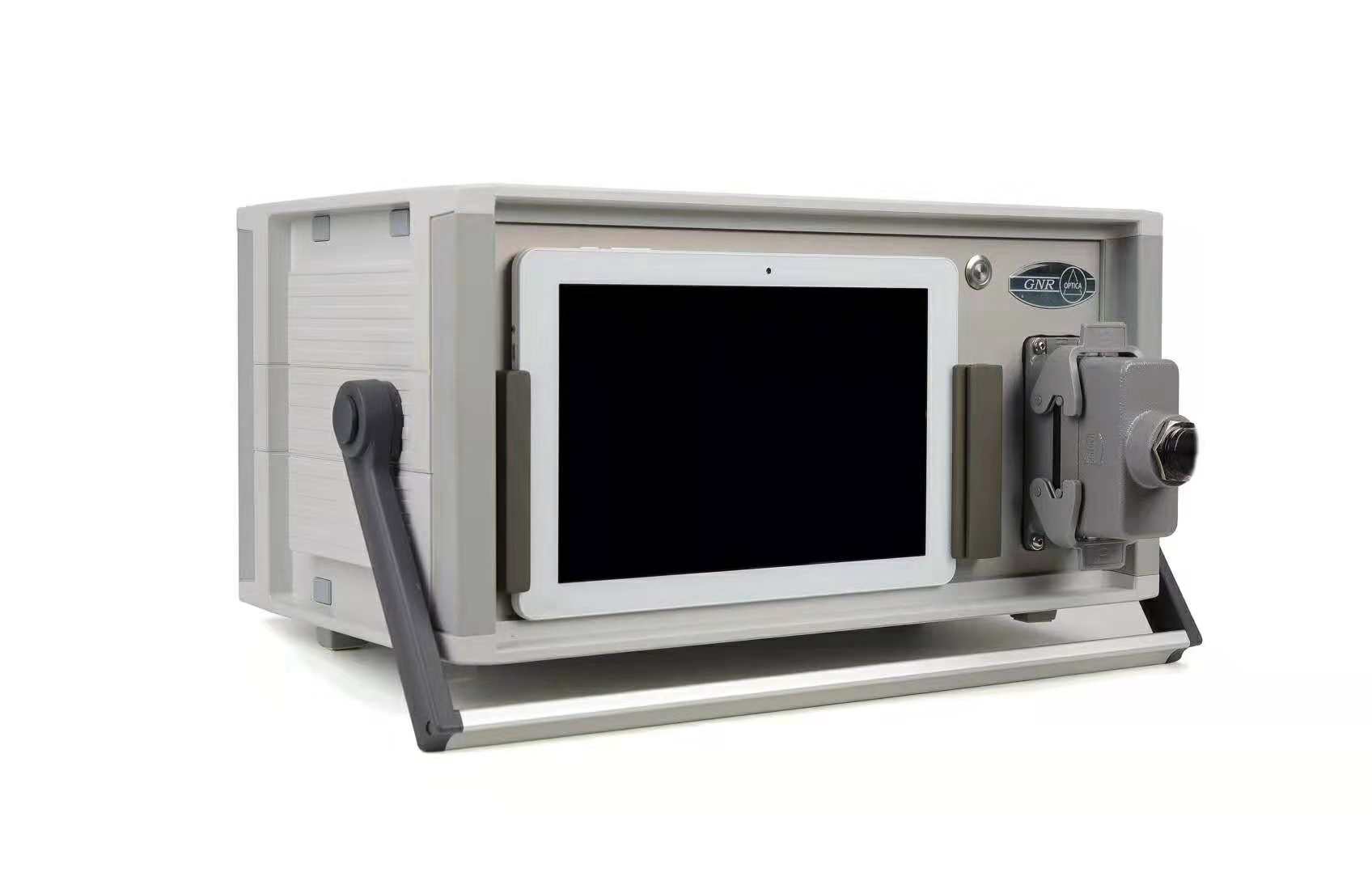

7. 控制中心:电脑

GNR公司提供参考配置:

Intel NUC:微型计算机,内置如仪器主机

CPU:INTEL

内存:4GB

硬盘:固态硬盘128G

平板电脑:安卓系统

操作系统:Microsoft Windows 8



8. 尺寸

尺寸(Dimension):W43 x D25 x H23 cm

重量(Weight):约 15 Kg



9. 电源

锂电池模式:

支持8小时工作时间或2小时连续激发

充电模式:

110/220V +/- 10%,单相(single phase),50/60 Hz

16 A,< 1.0 KVA



10. 其他

工作温度范围(Working temperature range): +5°C - +45°C

湿度范围(Working humidity): 15 – 85%

氩气溯流压力(Argon upstream pressure) : ~200 bar

氩气输入压力(Argon inlet pressure) : ~3.5 bar

氩气质量(Argon quality) (min.) : 5.0 (99.999% 氩气)

氩气流量(Argon flow rates)

l 待机流量(Stand-by flow) : 0.3L/分钟

l 分析流量(Analytical flow) :  6L/分钟
